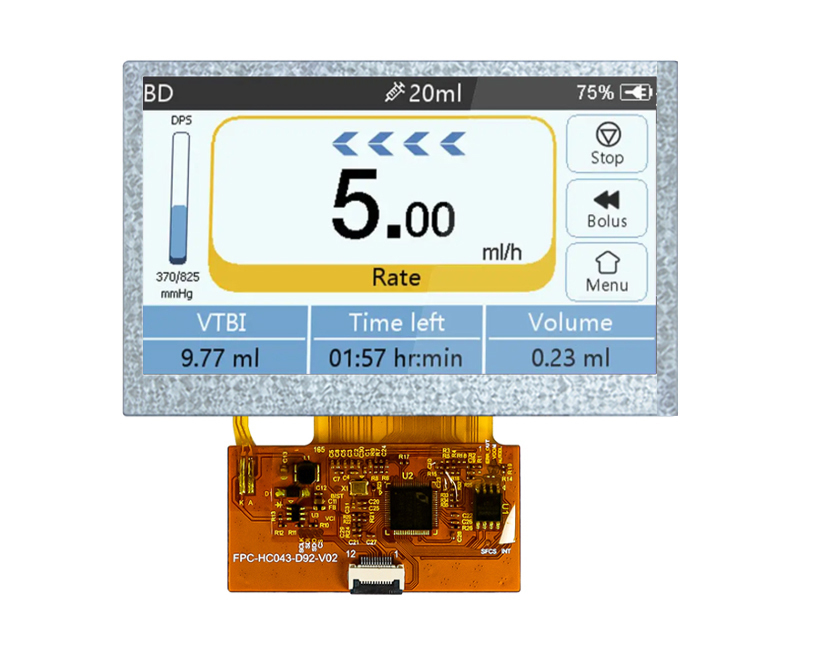

4.3 inch IPS display with SPI interface 800*480 lcd module

Name: 4.3 inch IPS display with SPI interface 800*480 lcd module
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: HC043IG30029-D92
Availability: InStock

Produktdetails

Place of Origin: China

Markenname: HETECH

Zertifizierung: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: HC043IG30029-D92

Zahlungs-u. Verschiffen-Ausdrücke

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Erhalten Sie besten Preis

Produktdetails

Produkt-Beschreibung

Hervorheben:

P/N:	HC043IG30029-D92	Size:	4.3"(IPS)
Display type:	(IPS)	Resolution:	800*480
Outline dimension:	105.5(W )67.2(H)4.05(T)mm	Active area:	95.04(W)*53.856(H)mm
Brightness:	300cd/m2	Interface:	12pinSPI
Viewing angle:	80/80/80/80	Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃	Contrast ratio:	500
Aspect rati16:9o:	16:9	Application:	medical syringe pump, optical network tester, portable aquaculture dissolved oxygen meter

P/N:	HC043IG30029-D92
Size:	4.3"(IPS)
Display type:	(IPS)
Resolution:	800*480
Outline dimension:	105.5(W )67.2(H)4.05(T)mm
Active area:	95.04(W)*53.856(H)mm
Brightness:	300cd/m2
Interface:	12pinSPI
Viewing angle:	80/80/80/80
Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃
Contrast ratio:	500
Aspect rati16:9o:	16:9
Application:	medical syringe pump, optical network tester, portable aquaculture dissolved oxygen meter

4.3 inch IPS display with SPI interface 800*480 lcd module

4.3 Inch TFT LCD with 300 Brightness and 500:1 Contrast Ratio

Product Description:

HC043IG30029-D92 is a standout 4.3-inch display with an active area of 95.04mm*53.856mm. Embedded in a compact frame of 105.5mm* 67.2mm* 4.05mm, it takes advantages of the TFT and IPS technology engineered for clear visuals and rugged reliability. Boasting 800*480 resolution, 500:1 contrast ratio, and 300 nits brightness, it delivers vivid clarity even in the harsh lighting. Also, ultra-wide 85° viewing angles from all directions, SPI interface an industrial-grade -20℃ to 70℃ operating range make this slim panel excels in medical syringe pump, optical network tester, portable aquaculture dissolved oxygen meter.

General Specification:

P/N	HC043IG30029-D92
Size	4.3inch
Display type	Normally Black, IPS
Resolution	480*272
Outline Dimension(mm)	105.5(W )67.2(H)4.05(T)mm
Active Area(mm)	95.04(W)*53.856(H)mm
Brightness(cd/m²)	300
Viewing Angle(L/R/T/B)	80/80/80/80
Interface	12pinSPI
Operation Temperature	-20~70℃
Storge Temperature	-30~80℃
Aspect ratio	16:9
Contrast ratio	500
Application	medical syringe pump, optical network tester, portable aquaculture dissolved oxygen meter

Pin assignment:

4.3 inch IPS display with SPI interface 800*480 lcd module 0

Electrical Characteristics

Item	Symbol	MIN	TYP	MAX	UNIT	Test Condition
Supply Voltage	Vf	-	15.5	-	V	If=40mA
Supply Current	If	-	40	-	mA	-
Life Time	-	30000	-	-	hrs	If=40mA

Product drawings:

4-4.3inch lcd display series:

4-4.3inch LCD Display Sizes
Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	4"	HC040I*30021-C82	IPS	480*480	74.6676.542.15mm	71.856*70.176mm	40pinRGB	800	300	-20~70℃	-30~80℃
2	4"	HC041IXA5030-F77	IPS	1280*640	106.961.92.9mm	92.544*46.272mm	40pinRGB	1500	1500	-40~105℃	-40~105℃
3	4"	HC040I*30021-C82V.C	IPS	480*480	868637.5mm	71.856*70.176mm	40pinRGB	800	250	-20~70℃	-30~80℃
4	4.3"	HC043TE20029-B58	TN	480*272	105.567.22.9mm	95.04*53.856mm	40pinRGB	500	200	-20~70℃	-30~70℃
5	4.3"	HC043IG30029-D92	IPS	800*480	105.567.22.9mm	95.04*53.86mm	12pinSPI	1200	300	-20~70℃	-30~80℃
6	4.3"	HC043IG30029-D92V.1	IPS	800*480	105.567.24.05mm	95.04 ×53.856mm	12pinSPI	500	280	-20~70℃	-30-80℃
7	4.3"	HC043TE20029-B55	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	200	-20~70℃	-30-80℃
8	4.3"	HC043TE30029-B03V01	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	300	-20~70℃	-30-80℃
9	4.3"	HC043TE30029-B03V.C	TN	480*272	105.567.24.5mm	95.04×53.856mm	40pinRGB	500	300	-20~70℃	-30-80℃
10	4.3"	HC043TE45031-B03	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	450	-20~70℃	-30-80℃
11	4.3"	HC043TE50029-B03	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	500	-20~70℃	-30-80℃
12	4.3"	HC043TE50029-B03V02	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	500	-20~70℃	-30-80℃
13	4.3"	HC043TE80031-B80	TN	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	500	800	-20~70℃	-30-80℃
14	4.3"	HC043TE78040-B80	TN	480*272	105.567.24.0mm	95.04*53.868mm	40pinRGB	500	780	-20~70℃	-30-80℃
15	4.3"	HC043IE30031-B80	IPS	480*272	105.567.23.0mm	95.04*53.856mm	40pinRGB	800	300	-20~70℃	-30-80℃
16	4.3"	HC043TE30040-B80V.1	TN	480*272	105.567.24.05mm	95.04×53.856mm	40pinRGB	500	200	-20~70℃	-20~70℃
17	4.3"	HC043TE40040-A46V.1	TN	480*272	104.7×66.4×4mm	95.04×53.856mm	40pinRGB	500	400	-20~70℃	--20~70℃
18	4.3"	HC043IG80030-B56	IPS	800*480	105.567.23.0mm	95.04*53.856mm	40pinRGB	800	800	-20~70℃	-30~80℃
19	4.3"	HC043IE40029-F47	IPS	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	800	400	-20~70℃	-30~80℃
20	4.3"	HC043IE50029-D65	IPS	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	800	500	-20~70℃	-30~80℃
21	4.3"	HC043IE50029-D65V.C	IPS	480*272	105.567.24.35mm	95.04*53.86mm	40pinRGB	800	450	-20~70℃	-30~80℃
22	4.3"	HC043IEA0029-B03H	IPS	480*272	105.567.22.9mm	95.04*53.86mm	40pinRGB	800	1000	-30~85℃	-30~85℃
23	4.3"	HC043IG50029-D20	IPS	800*480	105.567.22.9mm	95.04*53.86mm	40pinRGB	1200	500	-20~70℃	-30~80℃
24	4.3"	HC043IGA0029-D20H	IPS	800*480	105.567.22.9mm	95.04*53.86mm	40pinRGB	1200	1000	-30~85℃	-30~85℃

Customization:

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
